Go back
Current version: PPSE 12-15 by-B
PPSE 12-15
24 Month Warranty
Prev product
Next product
Foot pumps

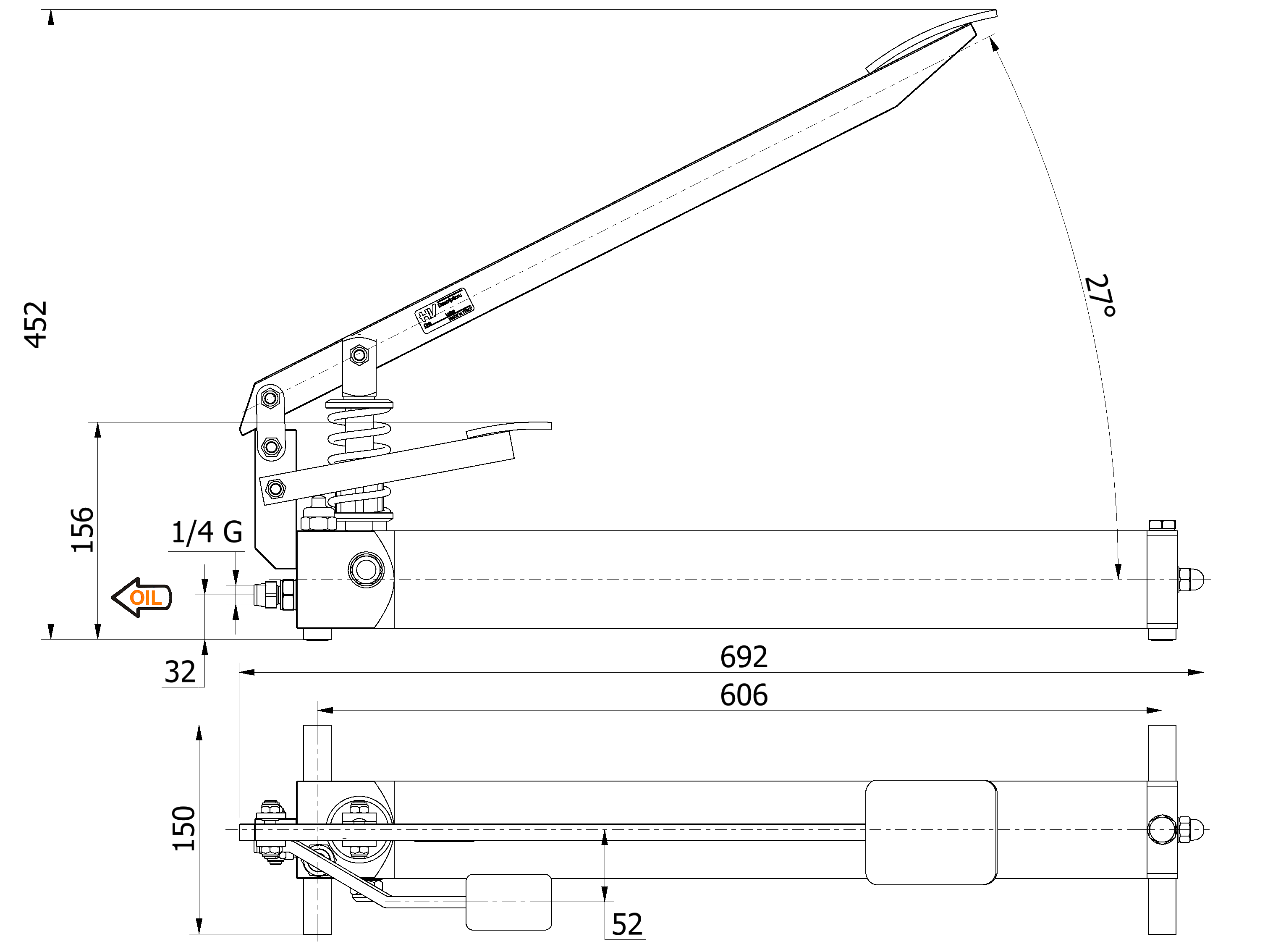

PPSE 12-15 by-B
Download documents
Technical Sheet
download
DETAILS
with release lever
with pressure relief valve
single acting pump for a single acting cylinder with 1,5 lt tank
SPECIFICATIONS
White zinc plated steel body
Piston treated with Niploy
White zinc plated external parts
Standard colour blue
EFFORT DIAGRAM
DISPLACEMENT
cm
3
A
mm
B
mm
C
mm
D
°
E
°
ACTUAL
DISPLACEMENT
cm
3
PRESSURE BAR
OPTIMAL
MAX
MASS
KG
CODE
3D DRAW
download
12
- -
- -
- -
- -
- -
11,445
140
250
10,000
6089.0001
DOWNLOAD 3D DRAW
15
- -
- -
- -
- -
- -
14,130
110
220
10,000
6090.0001
DOWNLOAD 3D DRAW
