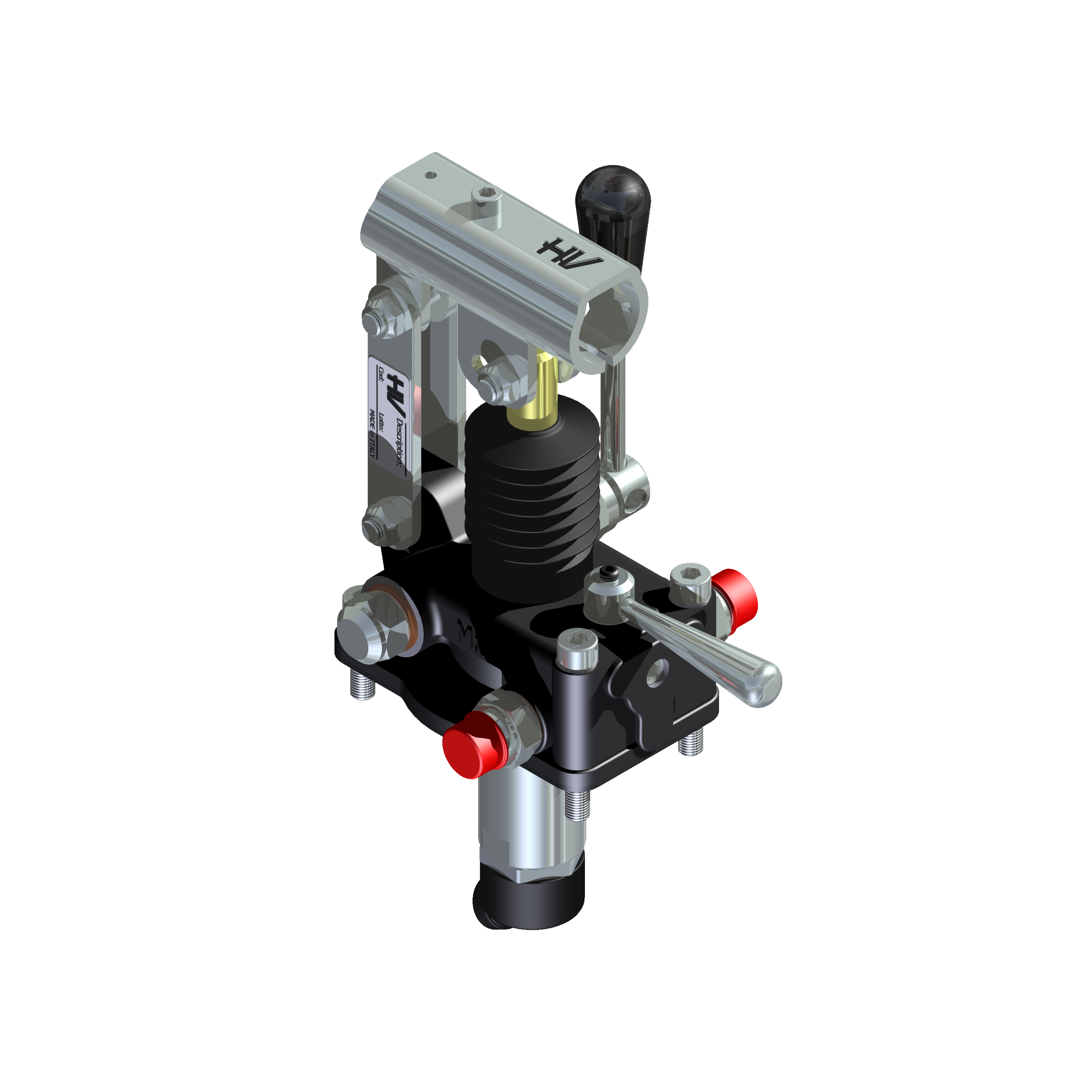

Hand pumps
PMD 6-12-25-45 dna-byA-L-s
DETAILS

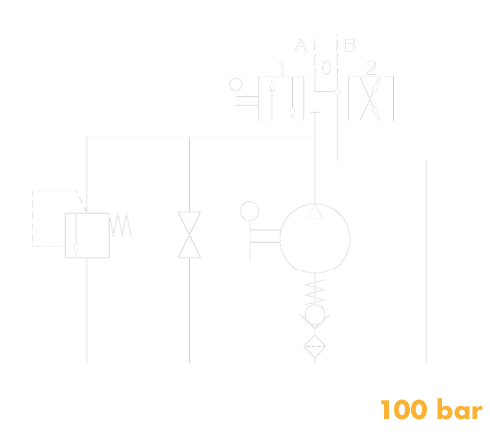

with 4/3 flow divider open centre
with release lever
with pressure relief valve
double acting hand pump for a double acting cylinder for fixing to tank
SPECIFICATIONS
Cast iron body
Piston treated with Niploy
White zinc plated support lever
Lever connection Ø 27
White zinc plated external parts
Standard colour black
Oil tank mounting kit included
Pressure relief valve standard
setting: 100 bar
On Demand ATEX Certificates
II2G Ex h IIB TX Gb
II2D Ex h IIIB TX Db
|
EFFORT DIAGRAM
|
|
