Hand pumps
PMO 50 byB-e-s
DETAILS
without release hand knob
with pressure relief valve
double acting hand pump for single acting cylinder for fixing to wall
SPECIFICATIONS
Cast iron body
Piston treated with Niploy
White zinc plated support lever
Lever connection Ø 27
White zinc plated external parts
Standard colour black

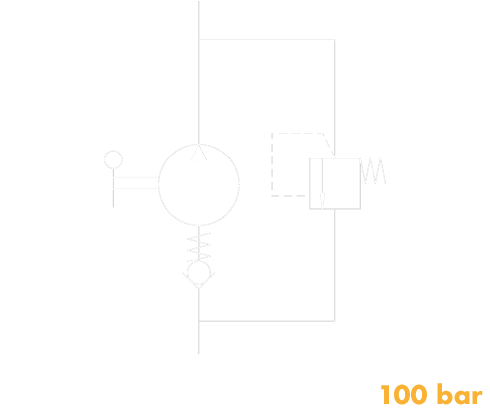

Hydraulic schema
ATEX

On Demand ATEX Certificates

II2G Ex h IIB TX Gb

II2D Ex h IIIB TX Db

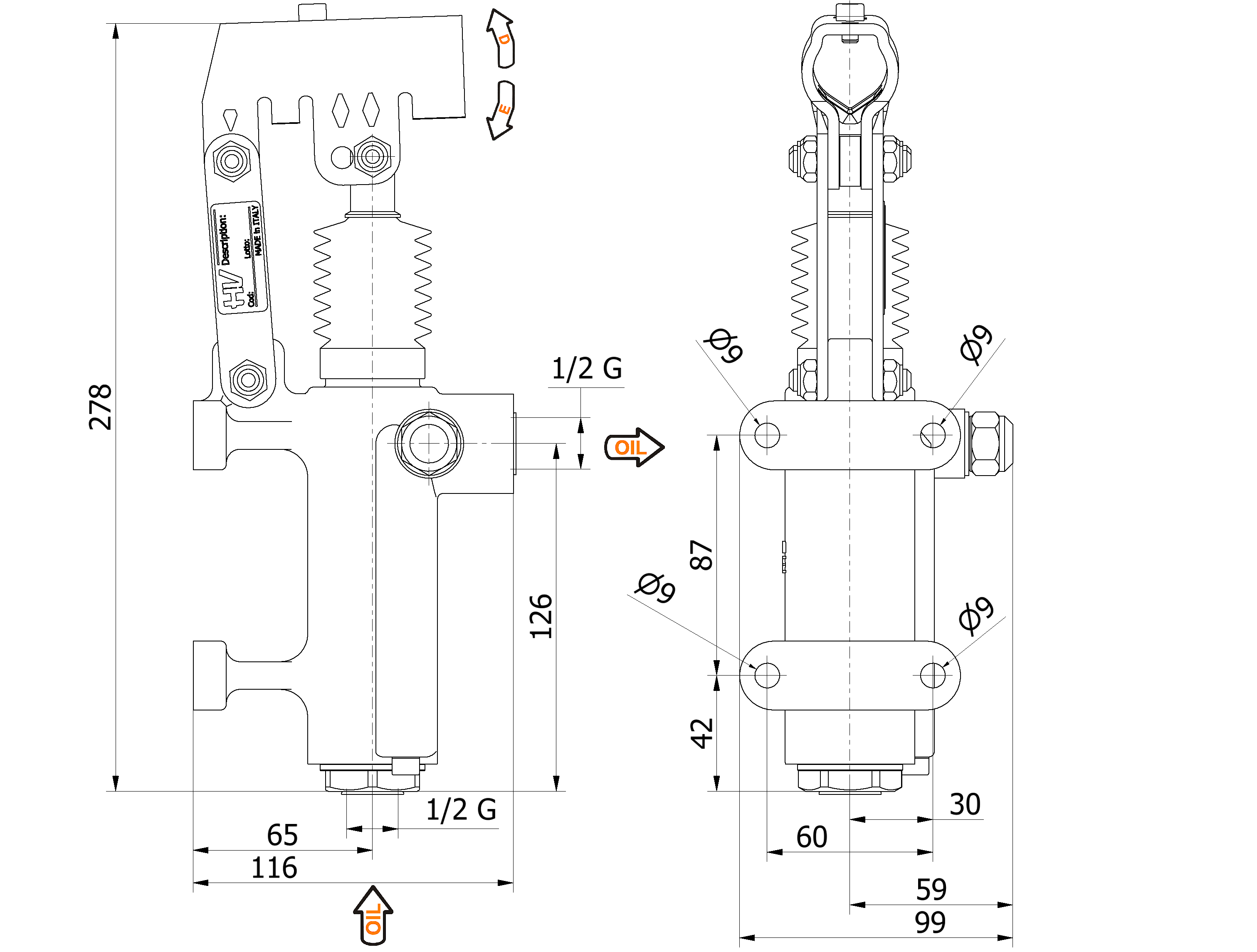

Product image
EFFORT DIAGRAM
Optimal Effort Graph
Product image
DISPLACEMENT
cm3		 A
mm		 B
mm		 C
mm		 D
°		 E
°		 ACTUAL
DISPLACEMENT
cm3
PRESSURE BAR
OPTIMAL MAX
MASS
KG		 CODE 3D DRAWdownload
50- -- -- -383743,825
80280
3,4006077.0036 DOWNLOAD 3D DRAW
