Hand pumps

PMP 12 e

DETAILS

without release hand knob
double acting hand pump for a single acting cylinder for fixing to a wall

SPECIFICATIONS

Aluminium body
Piston treated with Niploy
White zinc plated support lever
Lever connection Ø 20
White zinc plated external parts

On Demand ATEX Certificates

II2G Ex h IIB TX Gb

II2D Ex h IIIB TX Db

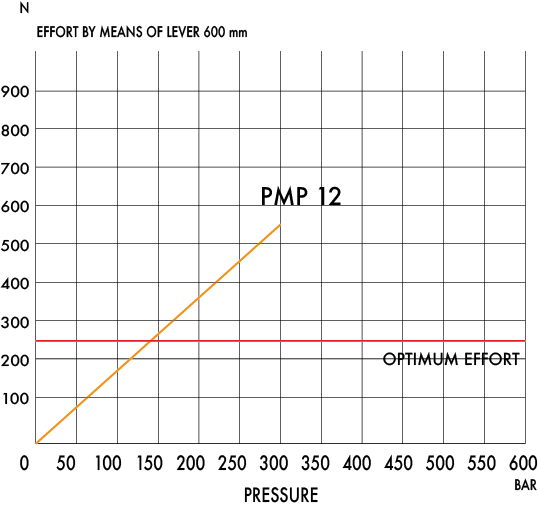

EFFORT DIAGRAM

DISPLACEMENT
cm³

A
mm

B
mm

C
mm

D
°

E
°

ACTUAL
DISPLACEMENT
cm³

PRESSURE BAR
OPTIMAL	MAX

MASS
KG

CODE

3D DRAWdownload

12.265

100

300

2.110

6076.0000
