Hand pumps

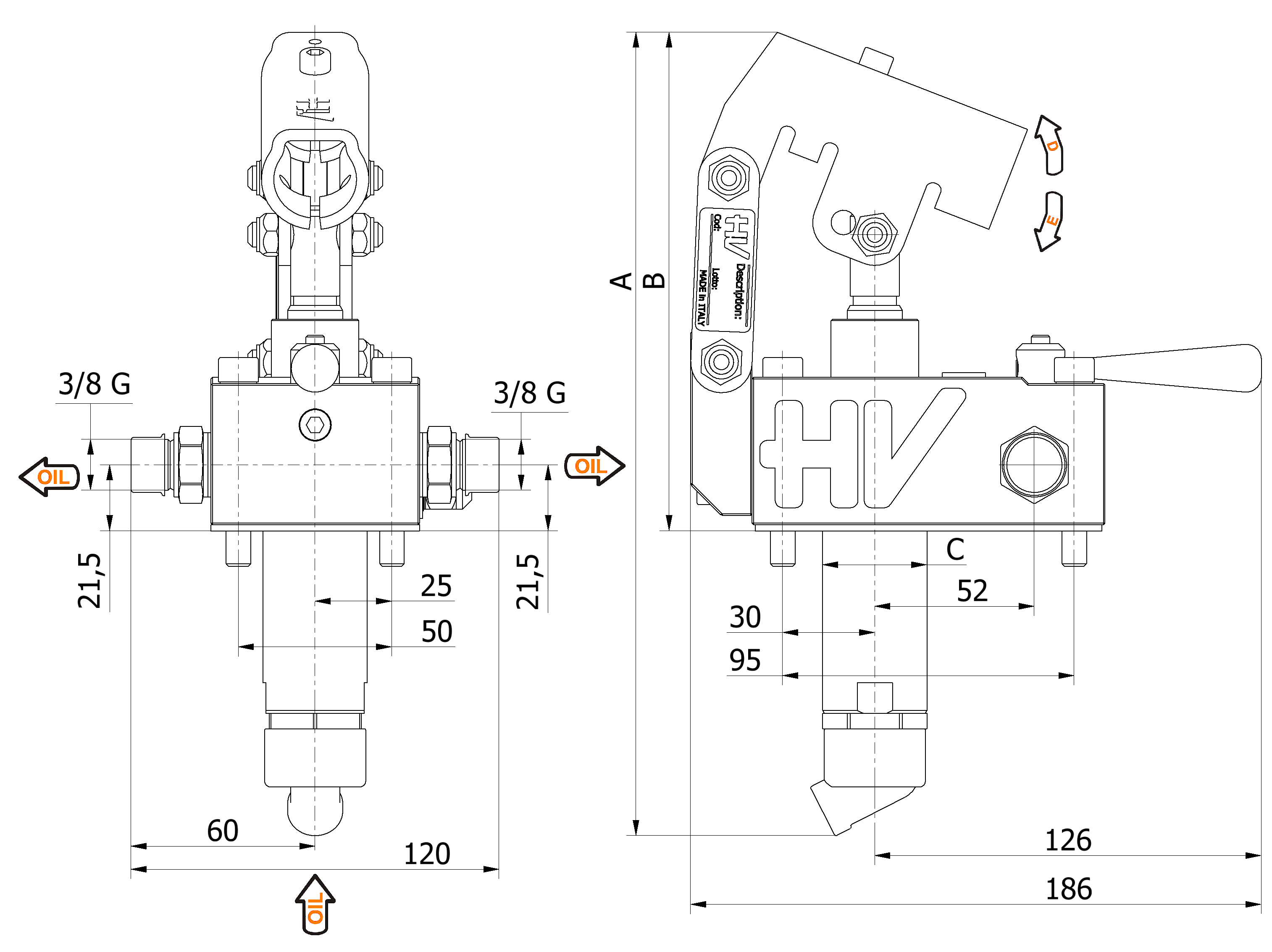

PMD 12-25-45 byB-AISI-316 (VMQ)
DETAILS

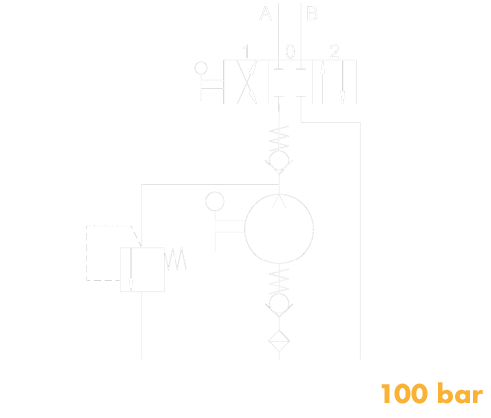

with 4/3 flow divider closed centre
with pressure relief valve
double acting hand pump for a double acting cylinder for fixing to tank
SPECIFICATIONS
Stainless steel AISI 316 pump body
Stainless steel AISI 630 piston rod with Niploy coating (50 μm)
Silicon seals (VMQ)
Lever connection Ø 27
Stainless steel AISI 316 external parts
Oil tank mounting kit including
Triple sealing system made to prevent
any oil leakage and sweating onto the piston rod
On Demand ATEX Certificates
II2G Ex h IIB TX Gb
II2D Ex h IIIB TX Db
|

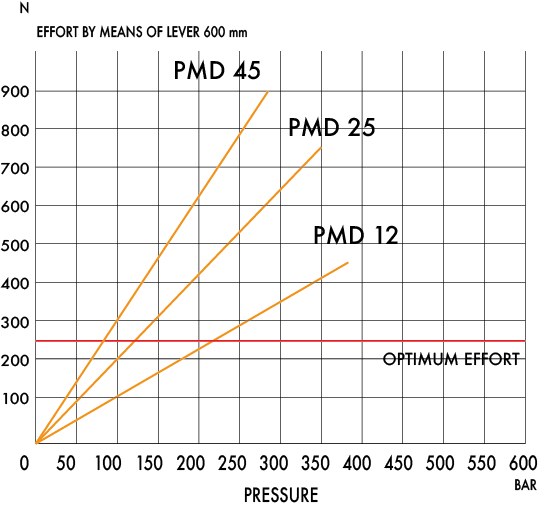

EFFORT DIAGRAM
|
|
