Hand pumps

PMO 50

DETAILS

Wwith release hand knob
double acting hand pump for single acting cylinder for fixing to wall

SPECIFICATIONS

Aluminium body
Piston treated with Niploy
White zinc plated support lever
Lever connection Ø 27
White zinc plated external parts

On Demand ATEX Certificates

II2G Ex h IIB TX Gb

II2D Ex h IIIB TX Db

EFFORT DIAGRAM

DISPLACEMENT
cm³

A
mm

B
mm

C
mm

D
°

E
°

ACTUAL
DISPLACEMENT
cm³

PRESSURE BAR
OPTIMAL	MAX

MASS
KG

CODE

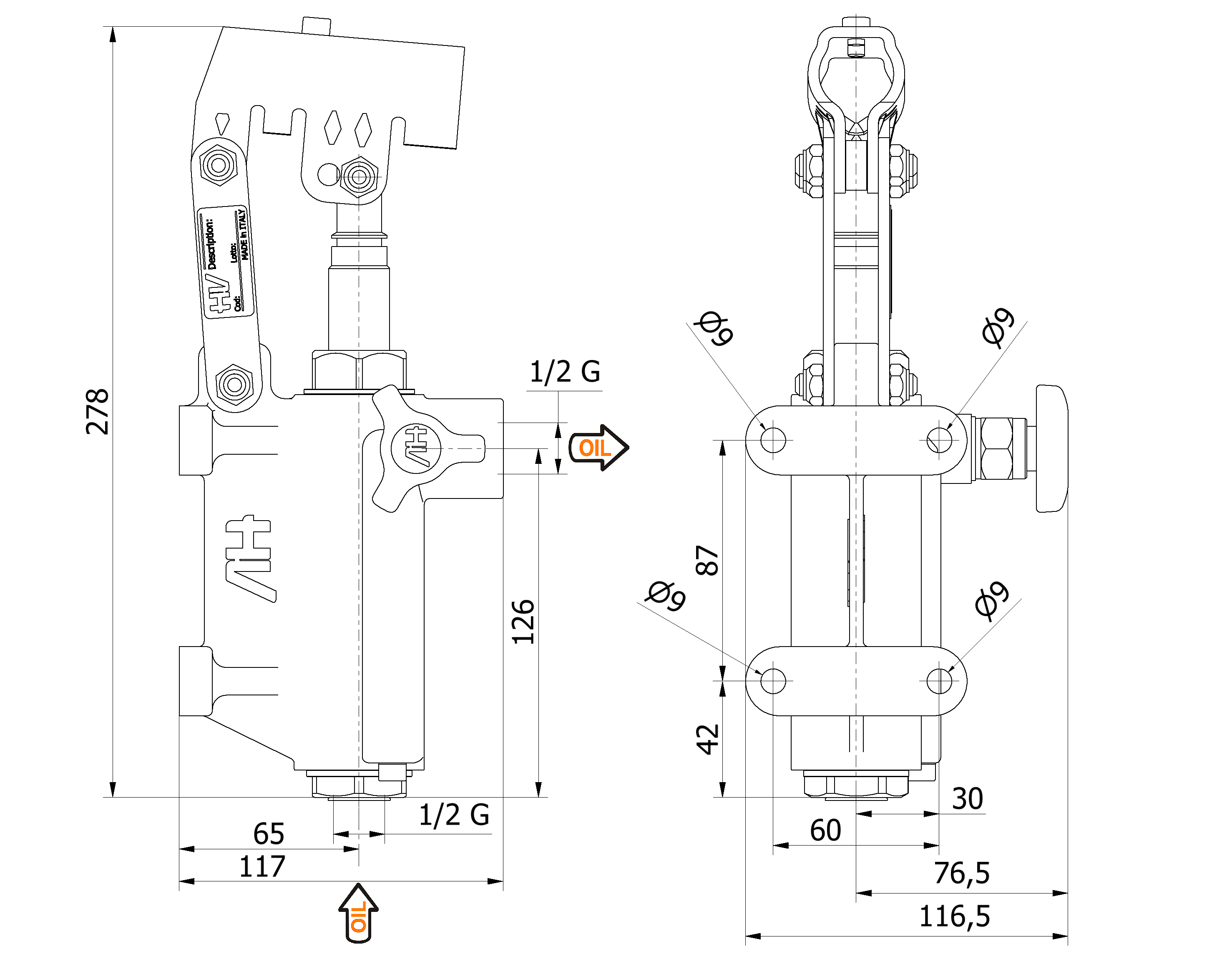

3D DRAWdownload

- -

43,825

280

3,400

6077.5000
