Hand pumps
PMSE 20-30-40 L-byA-s
DETAILS
with release lever
with pressure relief valve
single acting hand pump for a single acting cylinder for fixing to tank
SPECIFICATIONS
Cast iron body
Piston treated with Niploy
White zinc plated support lever
Lever connection Ø 27
White zinc plated external parts
Standard colour black
Oil tank mounting kit included
Hydraulic schema
ATEX

On Demand ATEX Certificates

II2G Ex h IIB TX Gb

II2D Ex h IIIB TX Db

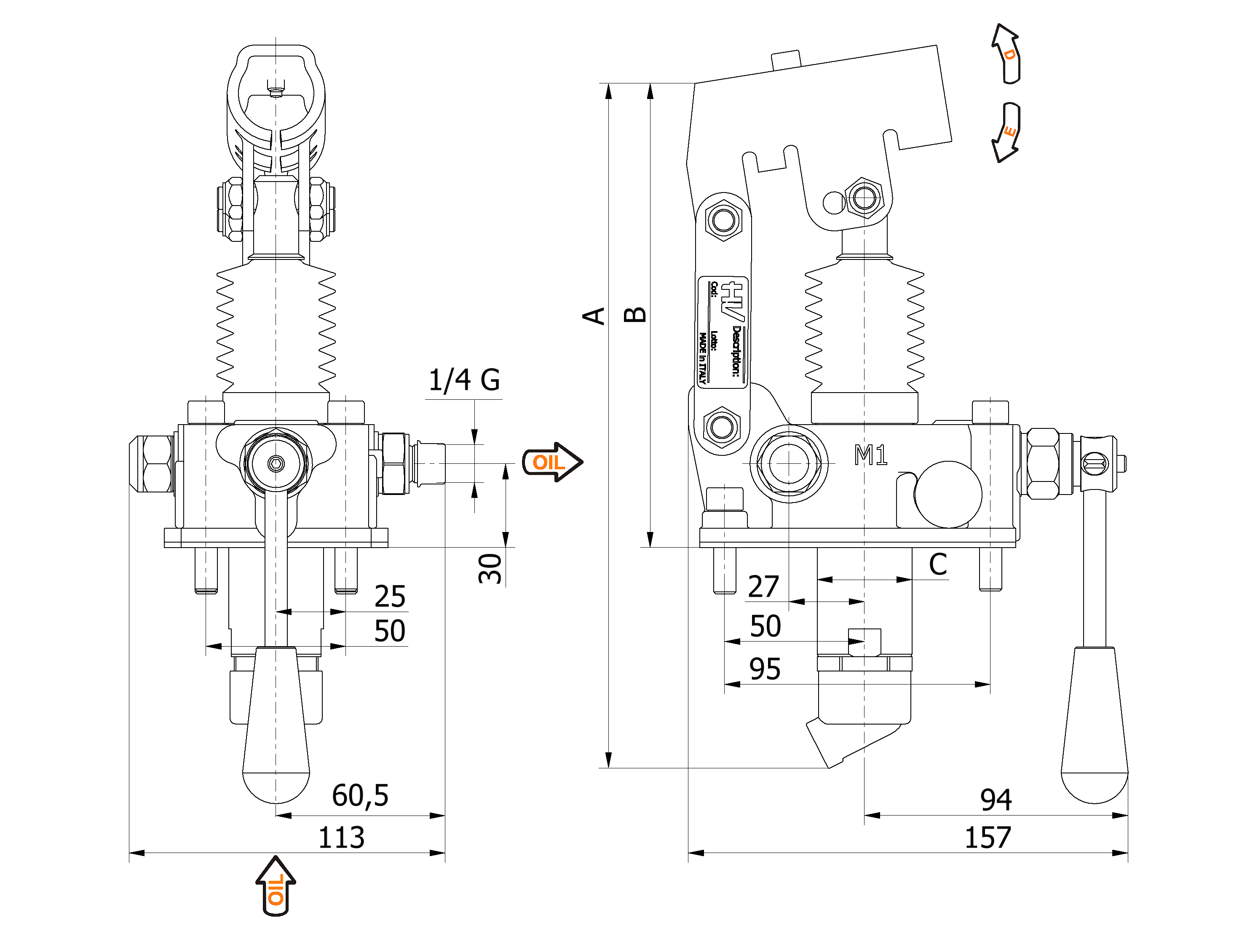

Product image

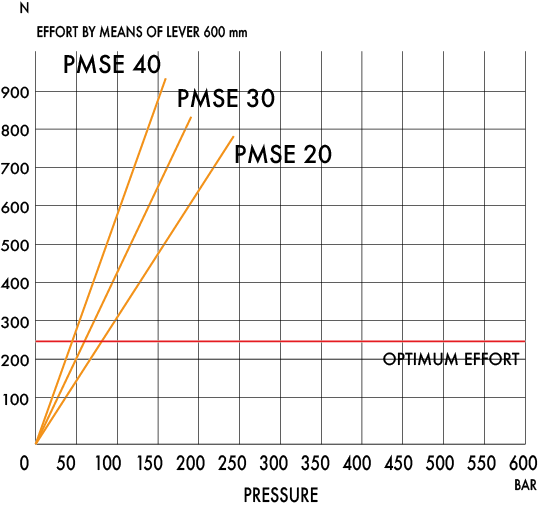

EFFORT DIAGRAM
Optimal Effort Graph
Product image
DISPLACEMENT
cm3		 A
mm		 B
mm		 C
mm		 D
°		 E
°		 ACTUAL
DISPLACEMENT
cm3
PRESSURE BAR
OPTIMAL MAX
MASS
KG		 CODE 3D DRAWdownload
2024916734352920,527
80240
3,1006067.0042 DOWNLOAD 3D DRAW
3025216734382630,262
60185
3,2006068.0042 DOWNLOAD 3D DRAW
4025216740382640,290
40160
3,3006069.0042 DOWNLOAD 3D DRAW
