Hand pumps
PMSEC 5 eb
DETAILS
without release hand knob
single-acting version to operate a single-acting cylinder for fixing to a wall
SPECIFICATIONS
Aluminium body
Niploy coated piston
White zinc plated support lever
Lever connection Ø 20
White zinc plated external parts

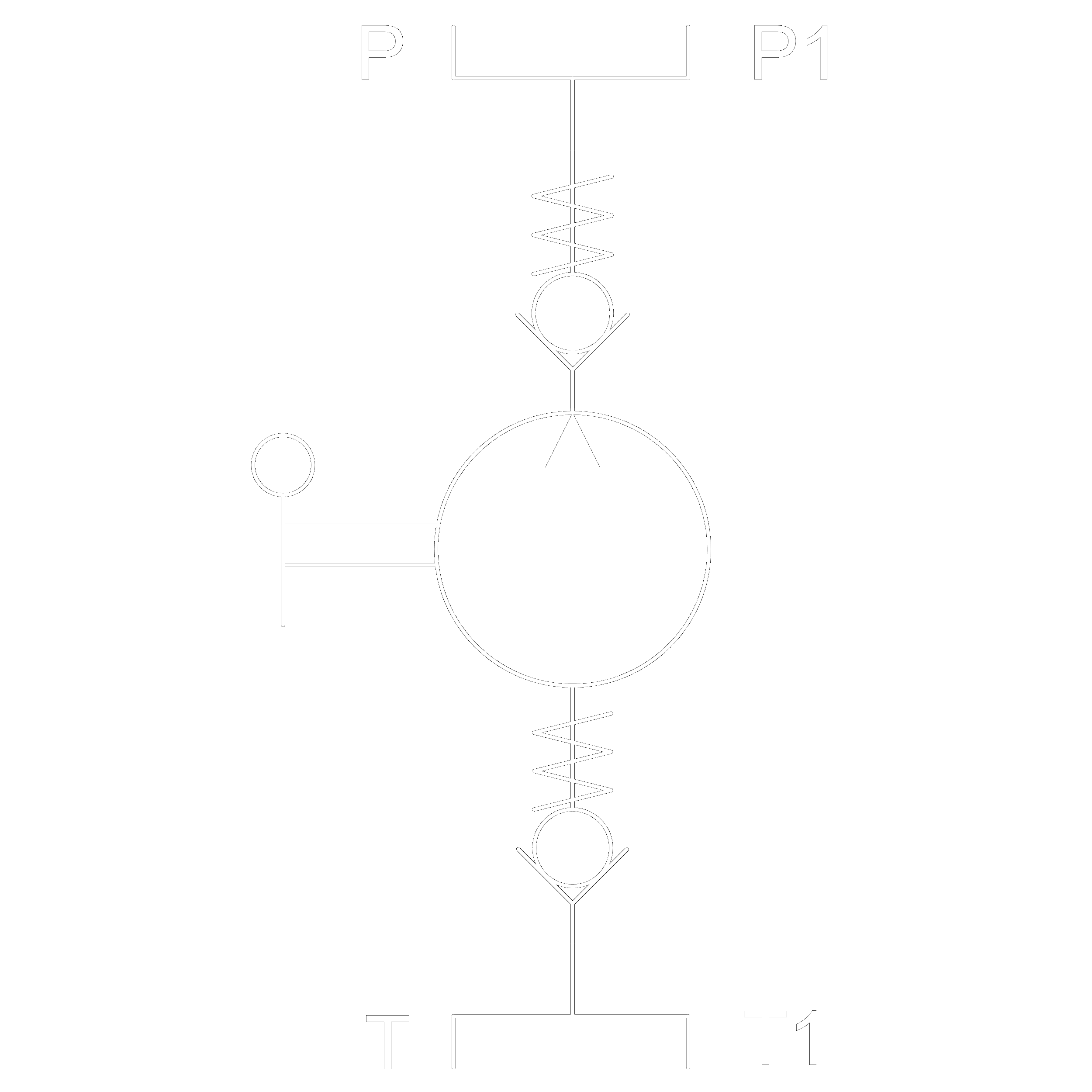

Hydraulic schema
ATEX

On Demand ATEX Certificates

II2G Ex h IIB TX Gb

II2D Ex h IIIB TX Db

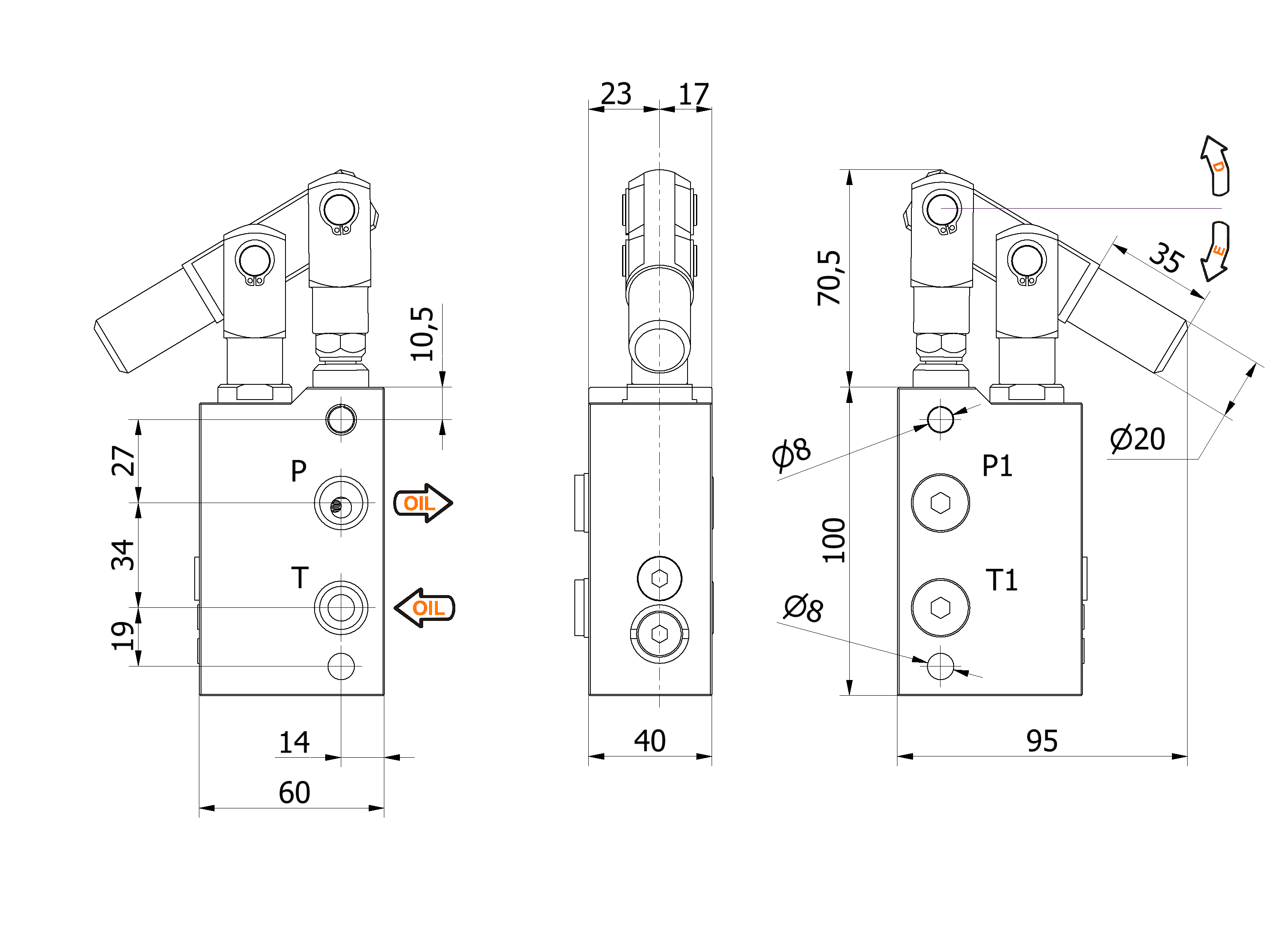

Product image
EFFORT DIAGRAM
Optimal Effort Graph
Product image
DISPLACEMENT
cm3		 A
mm		 B
mm		 C
mm		 D
°		 E
°		 ACTUAL
DISPLACEMENT
cm3
PRESSURE BAR
OPTIMAL MAX
MASS
KG		 CODE 3D DRAWdownload
5------31315,380
215300
1,1206106.0001 DOWNLOAD 3D DRAW
