Inverter valves

D4

DETAILS

4 ways flow inverter

SPECIFICATIONS

Iron cast body
White zinc plated external parts
Standard colour black

Hydraulic schema

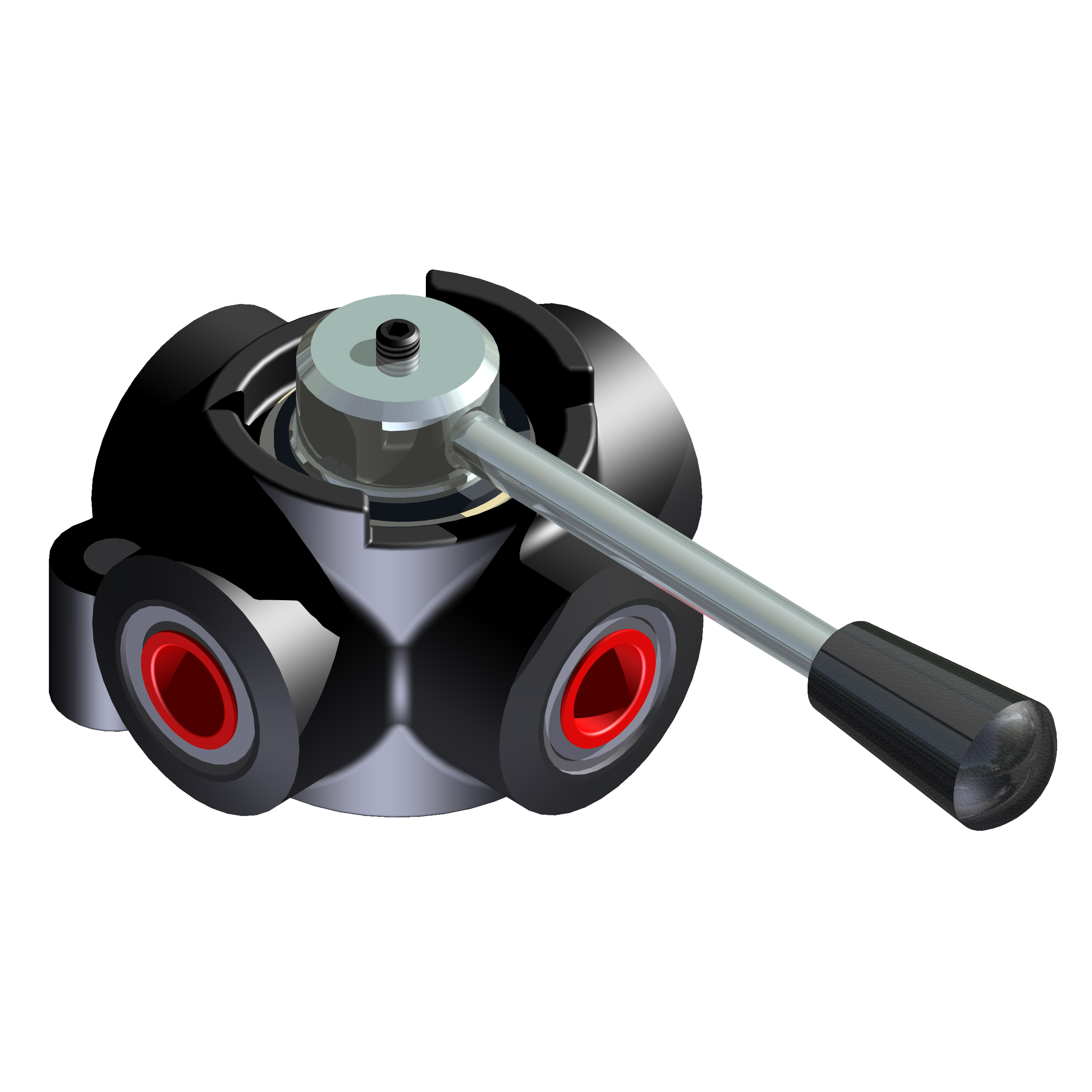

Product image

Product image

GAS	FLOW liters/min	PRESSURE BAR	B mm	C mm	D mm	E mm	F mm	G mm	H mm	L mm	M mm	MASS KG	CODE OF OPEN CENTRE	CODE OF CLOSED CENTRE	3D DRAWdownload

1/4"	60	350	80	54	8,5	28	80	24	63	115	155	1,200	7001.0104	7001.0111	DOWNLOAD 3D DRAW
