Inverter valves

D8

DETAILS

8 ways flow inverter

SPECIFICATIONS

Iron cast body
White zinc plated external parts
Standard colour black

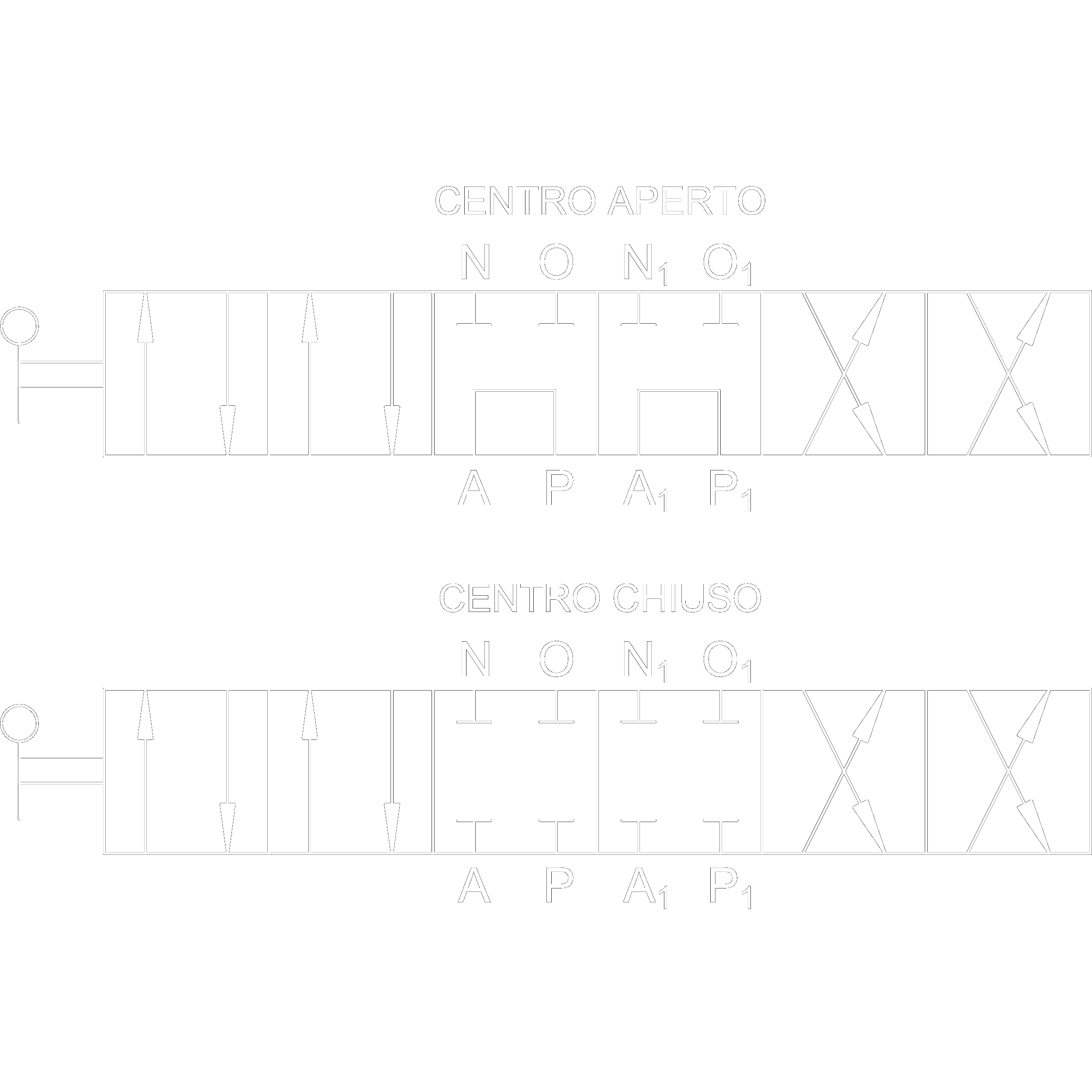

Hydraulic schema

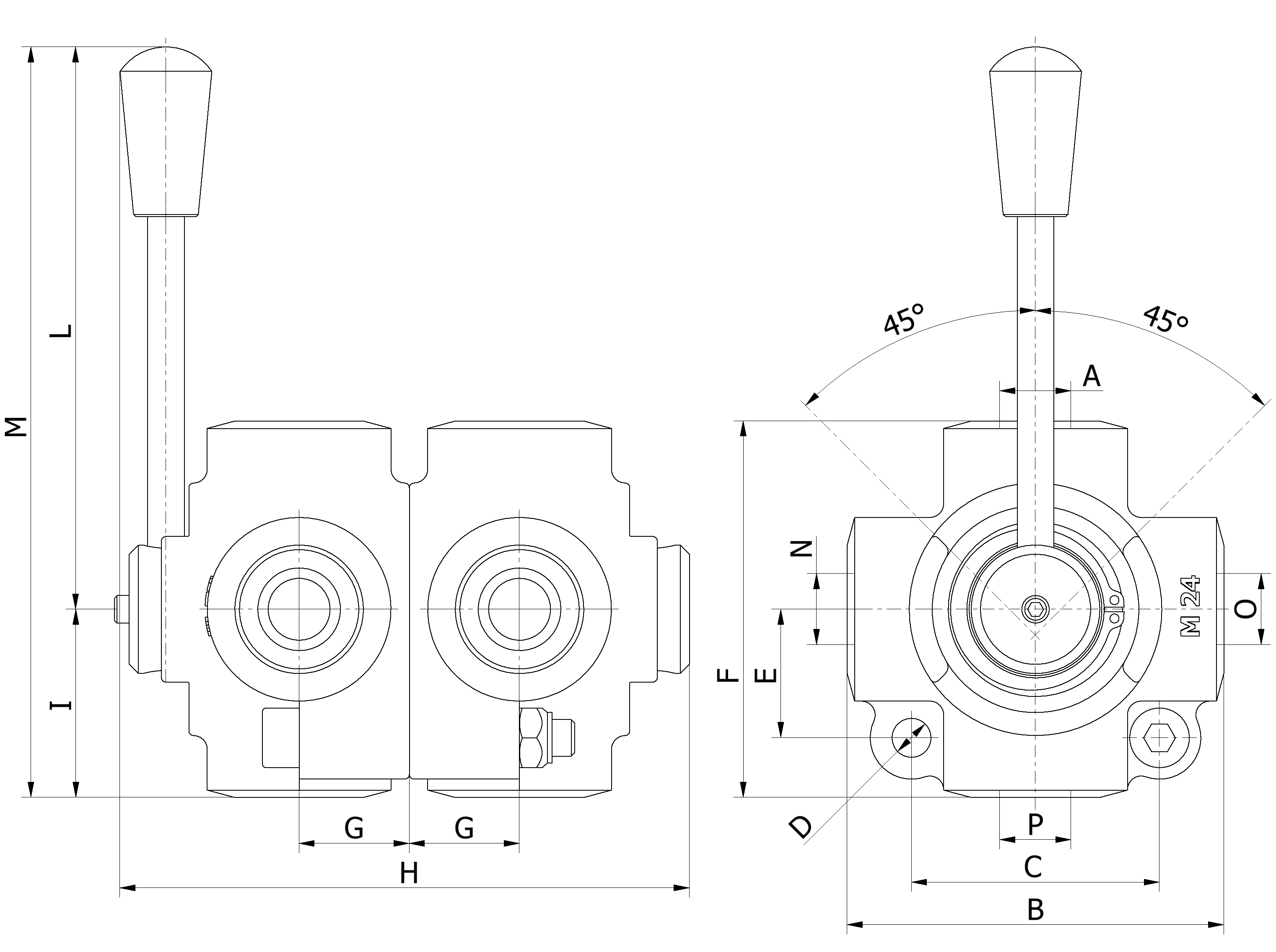

Product image

Product image

GAS	FLOW liters/min	PRESSURE BAR	B mm	C mm	D mm	E mm	F mm	G mm	H mm	L mm	M mm	MASS KG	CODE OF OPEN CENTRE	CODE OF CLOSED CENTRE	3D DRAWdownload

1/4"	60+60	350	80	54	8,5	20	80	24	124	115	155	2,300	7005.0104	7005.0111	DOWNLOAD 3D DRAW
3/8"	60+60	350	80	54	8,5	28	80	24	124	115	155	2,300	7005.0100	7005.0107	DOWNLOAD 3D DRAW
1/2"	90+90	350	80	54	8,5	28	80	24	124	115	155	2,100	7005.0101	7005.0108	DOWNLOAD 3D DRAW
3/4"	120+120	350	94	74	10,5	38	94	31	152	115	162	4,300	7005.0102	7005.0109	DOWNLOAD 3D DRAW
1"	200+200	300	94	74	10,5	38	94	31	152	115	162	4,000	7005.0103	7005.0110	DOWNLOAD 3D DRAW
