Tanks for hand pumps
S1 (100×150)
DETAILS
painted steel oil tank for hand pumps lt. 1
SPECIFICATIONS
Model S1 ac 100x150x120
Suction pipe included
Breather cap 1/4 G
Release cap 1/4 G
Standard colour black
Diagram not available

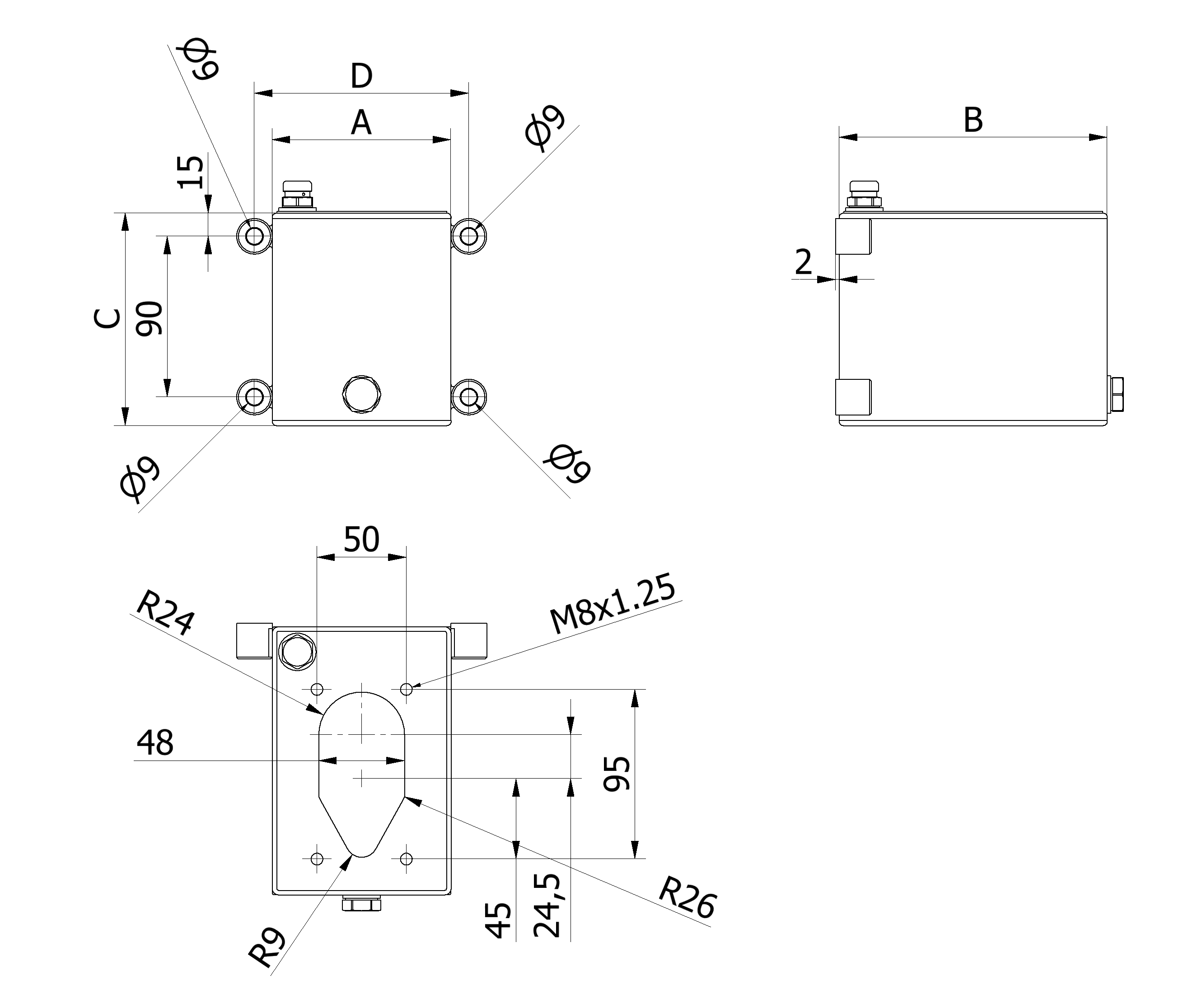

Product image
Product image
CAPACITY
liters		 A
mm		 B
mm		 C
mm		 D
mm		 MASS
KG		 SUCTION PIPE CODE 3D DRAWdownload
11001501201202,200Ø10x85 mm6500.0257 DOWNLOAD 3D DRAW
