Tanks for hand pumps
S3 (100×150)
DETAILS
painted steel oil tank for hand pumps lt. 3
SPECIFICATIONS
Model S3 ac 100x150x255
Suction pipe included
Breather cap 1/4 G
Release cap 1/4 G
Standard colour black
Diagram not available

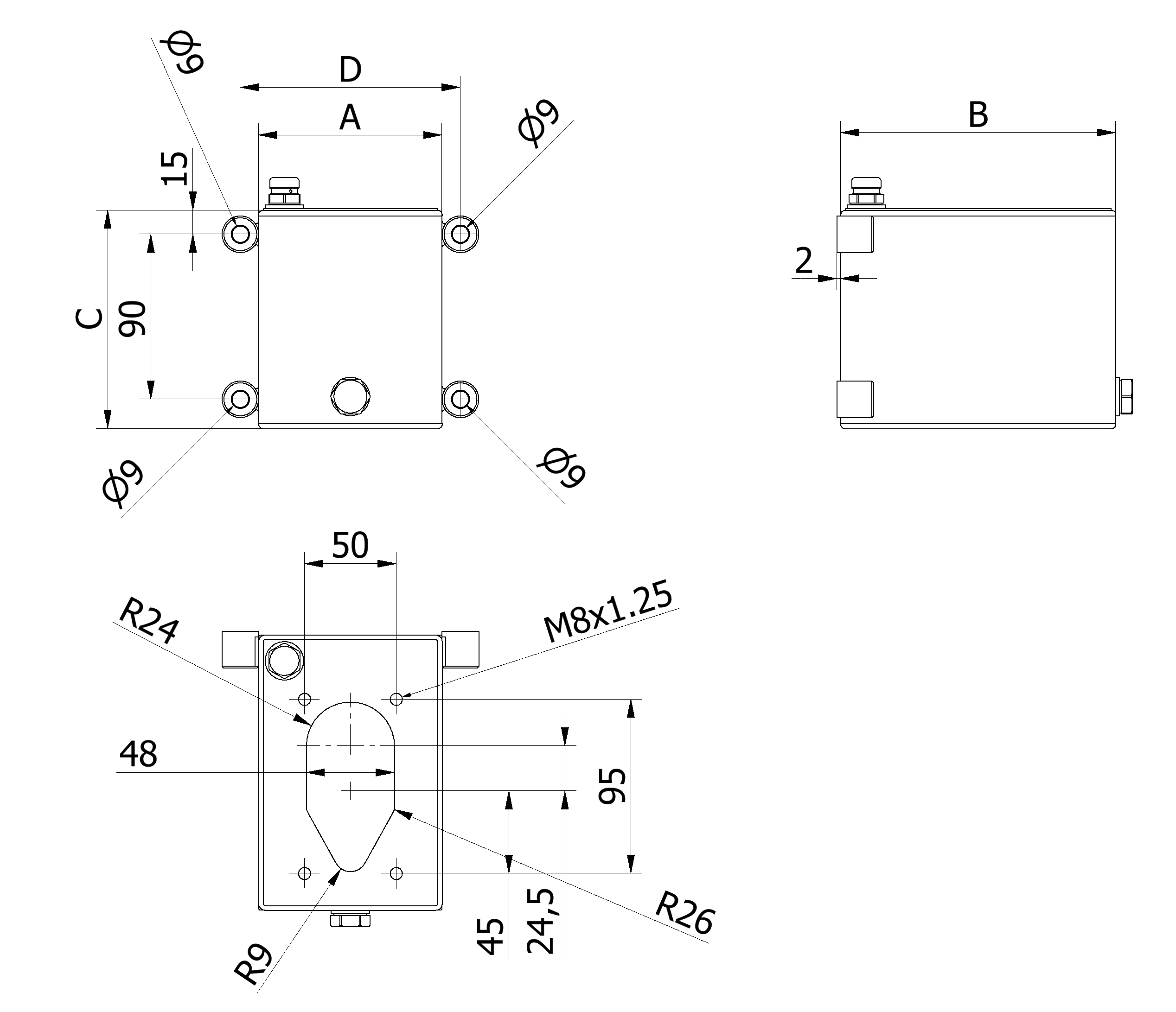

Product image

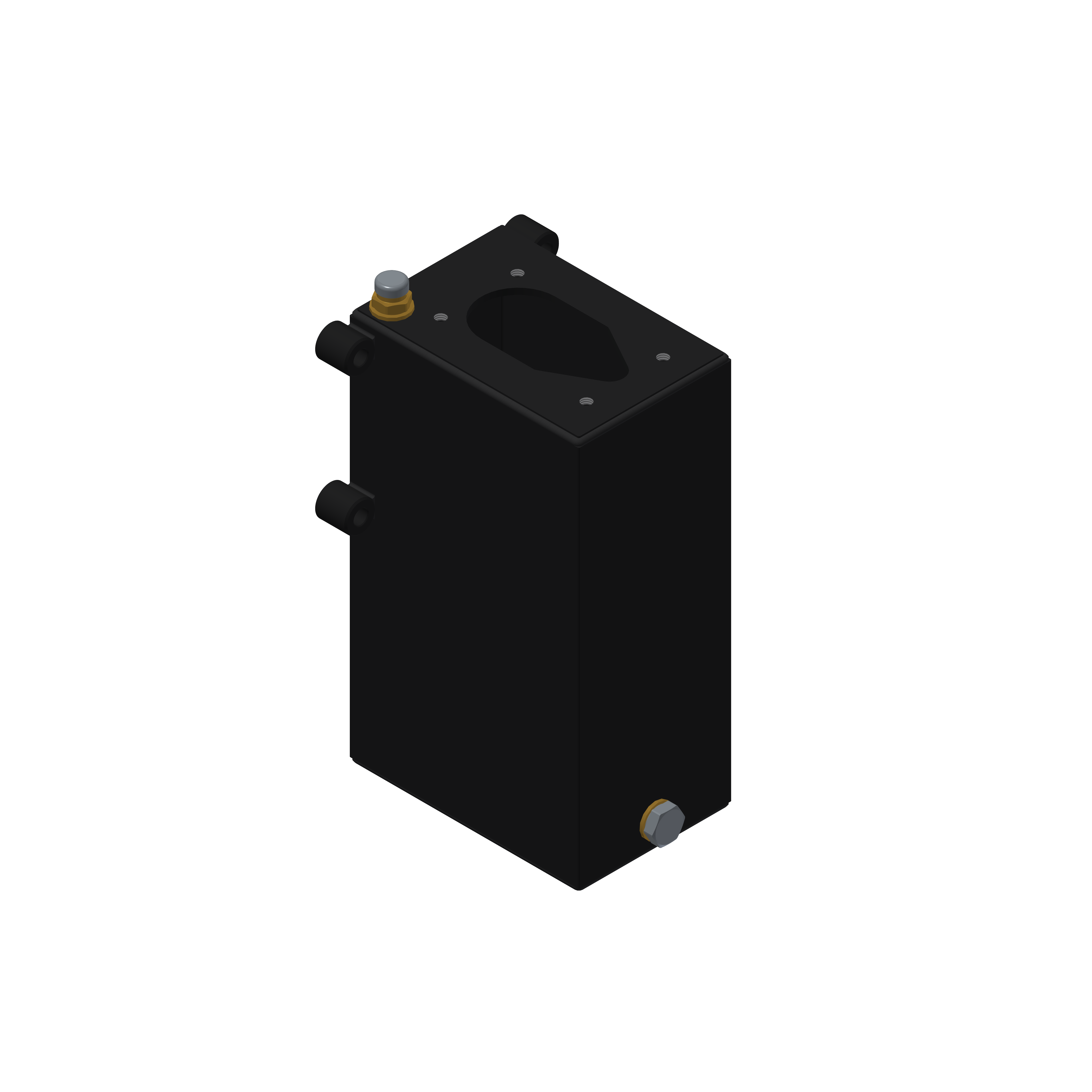

Product image
CAPACITY
liters		 A
mm		 B
mm		 C
mm		 D
mm		 MASS
KG		 SUCTION PIPE CODE 3D DRAWdownload
31001502551203,700Ø10x180 mm6500.0259 DOWNLOAD 3D DRAW
