Current version: PMP 25 ep
PMP 25 e
24 Month Warranty
Prev product
Next product
Hand pumps
PMP 25 ep
Download documents
Technical Sheet
download
Installation and operation
Manual
download
DETAILS
without release hand knob

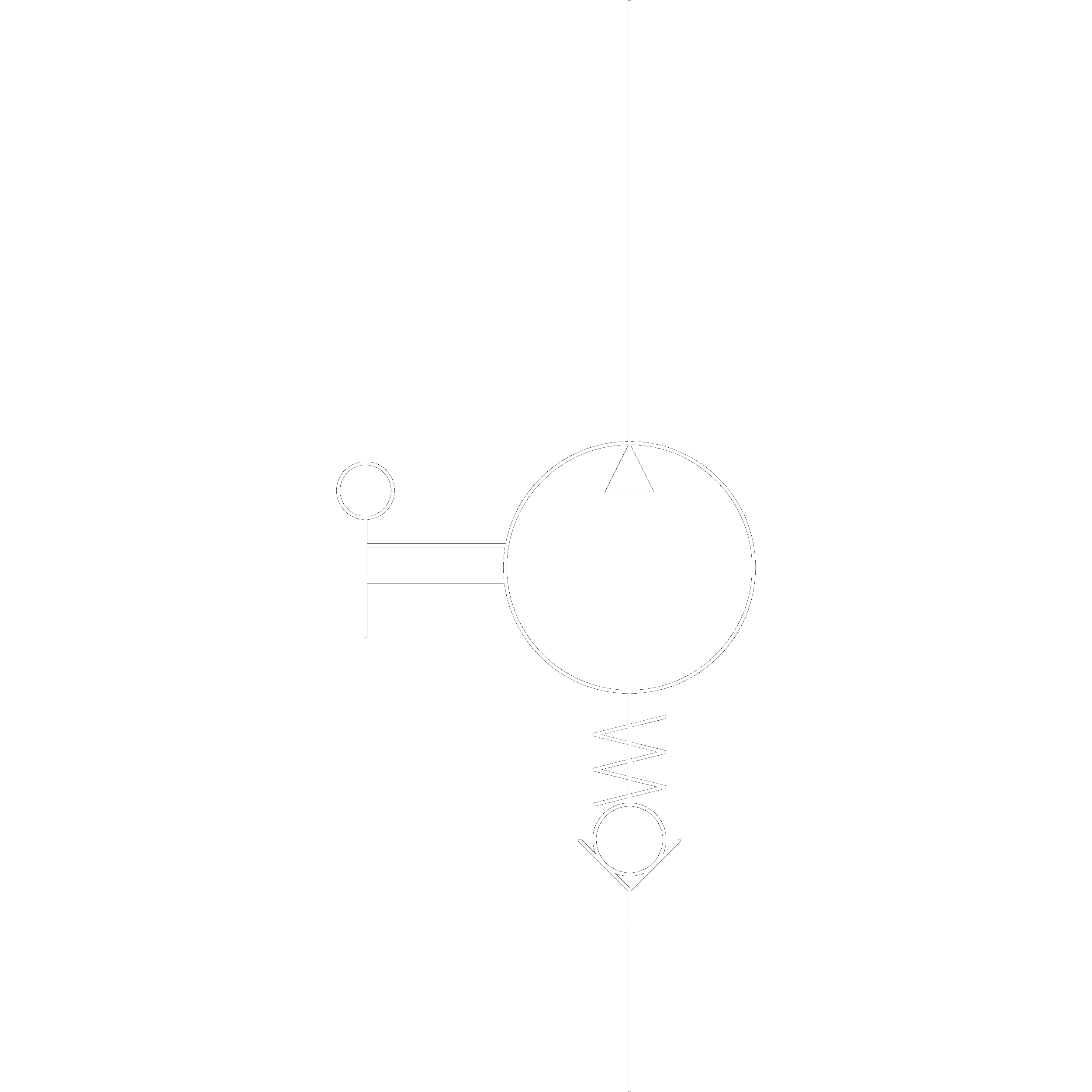

double acting hand pump for a single acting cylinder for fixing to a wall
SPECIFICATIONS
Anticorodal aluminium body Niploy coated piston
White zinc plated support lever Lever connection Ø 27
White zinc plated external parts
On Demand
ATEX Certificates
II2G Ex h IIB TX Gb
II2D Ex h IIIB TX Db

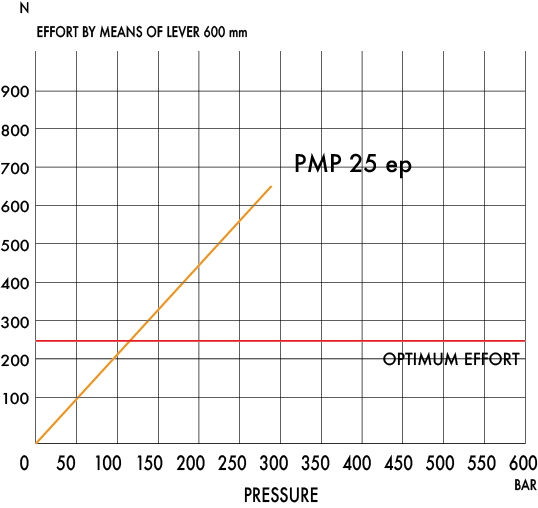

EFFORT DIAGRAM
DISPLACEMENT
cm
3
A
mm
B
mm
C
mm
D
°
E
°
ACTUAL
DISPLACEMENT
cm
3
PRESSURE BAR
OPTIMAL
MAX
MASS
KG
CODE
3D DRAW
download
25
- -
- -
- -
31
26
24,040
100
300
2,630
6075.0103
DOWNLOAD 3D DRAW
