D8 SAE
24 Month Warranty Prev product Next product
Inverter valves
D4 SAE
DETAILS
4 ways flow inverter
SPECIFICATIONS
Iron cast body
White zinc plated external parts
Standard colour black

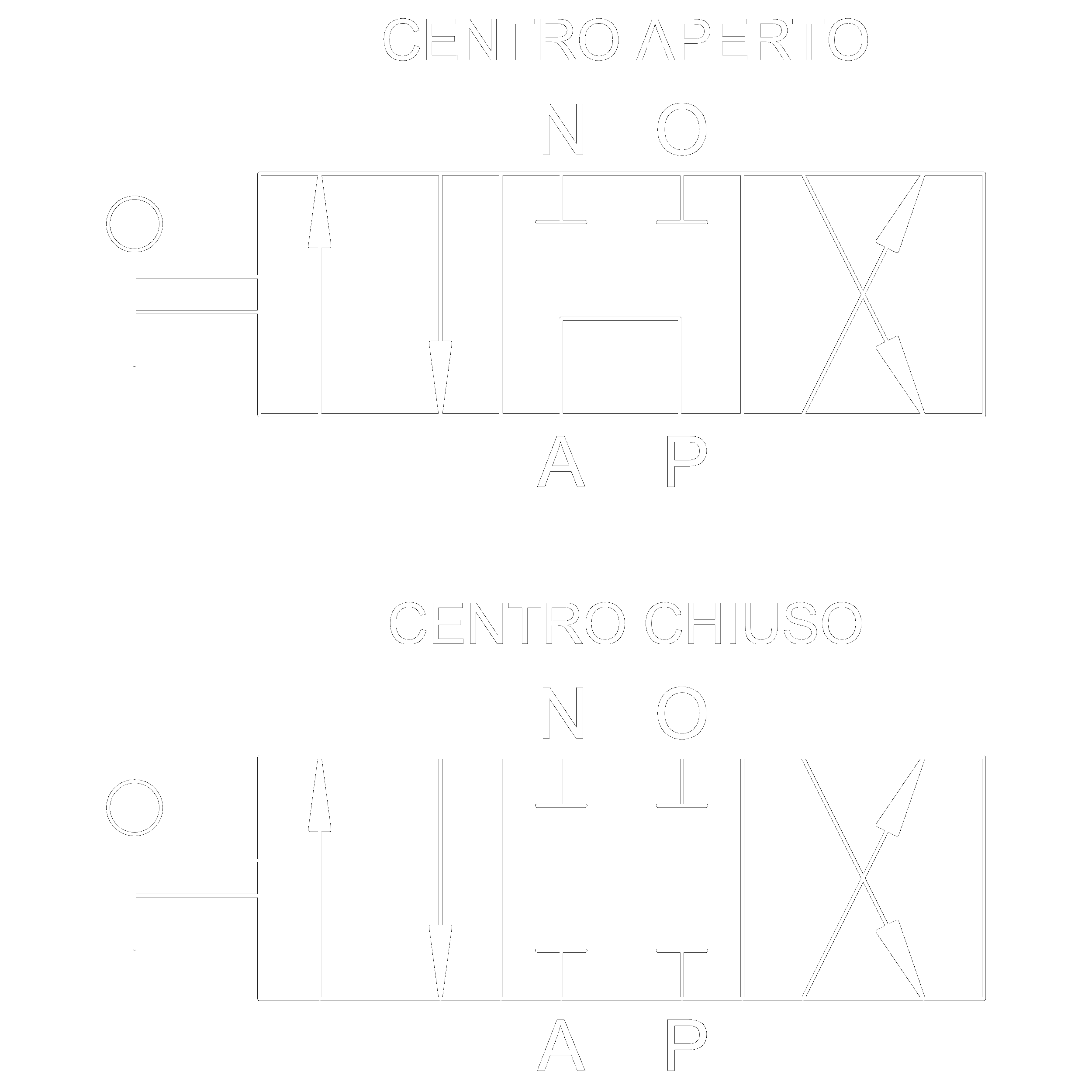

Hydraulic schema

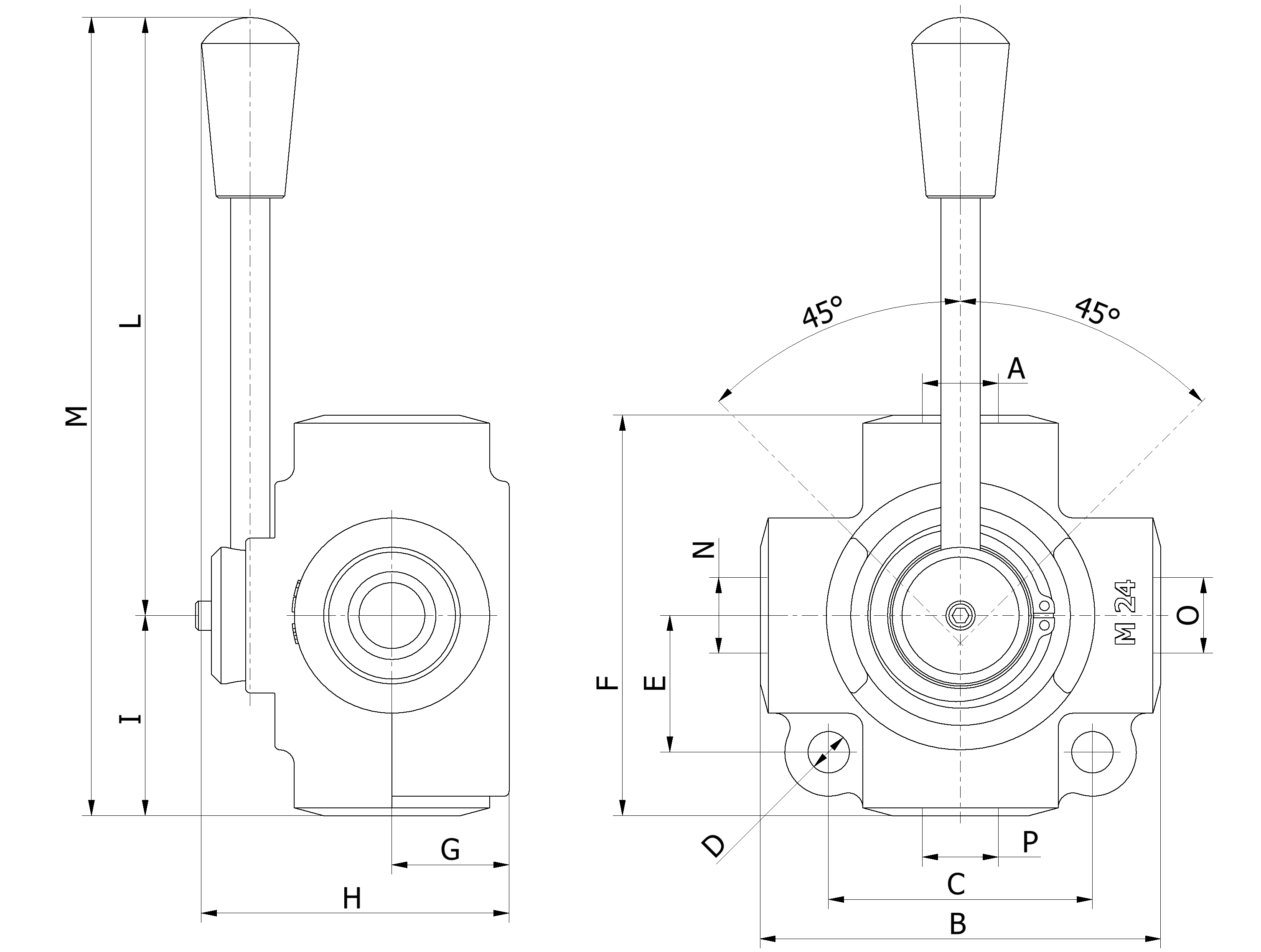

Product image

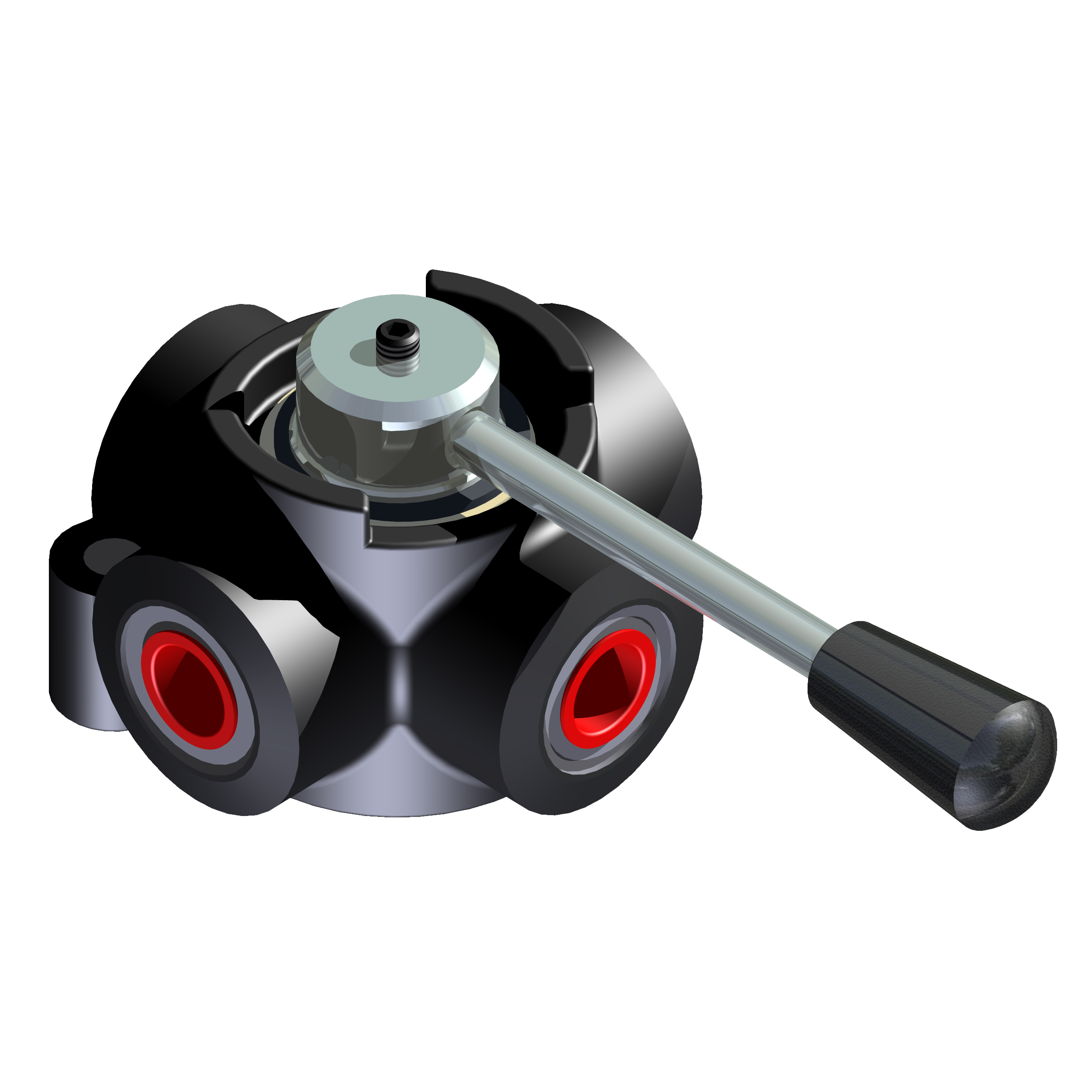

Product image
SAE FLOW
liters/min		 PRESSURE
BAR		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 G
mm		 H
mm		 L
mm		 M
mm		 MASS
KG		 CODE
OF OPEN
CENTRE		 CODE
OF CLOSED
CENTRE		 3D DRAWdownload
3/4 - 166035080548,5288024631151551,2007001.02007001.0207 DOWNLOAD 3D DRAW
7/8 - 149035080548,5288024631151551,1007001.02017001.0208 DOWNLOAD 3D DRAW
1 1/16 - 12120350947410,5389431771151622,2007001.02027001.0209 DOWNLOAD 3D DRAW
1 5/16 - 12200300947410,5389431771151622,0007001.02037001.0210 DOWNLOAD 3D DRAW
