Hand pumps
PM2V 5-50 a-vb-byB
DETAILS
with release hand knob
with automatic control for the 1st speed
with pressure relief valve and pressure-gauge two speed hand pump for a single acting cylinder for fixing to tank
SPECIFICATIONS
Yellow zinc plating + sealant 15 micron external parts
Piston treated with Niploy
Lever connection Ø 20
Oil tank mounting kit included
Hydraulic schema
ATEX

On Demand ATEX Certificates

II2G Ex h IIB TX Gb

II2D Ex h IIIB TX Db

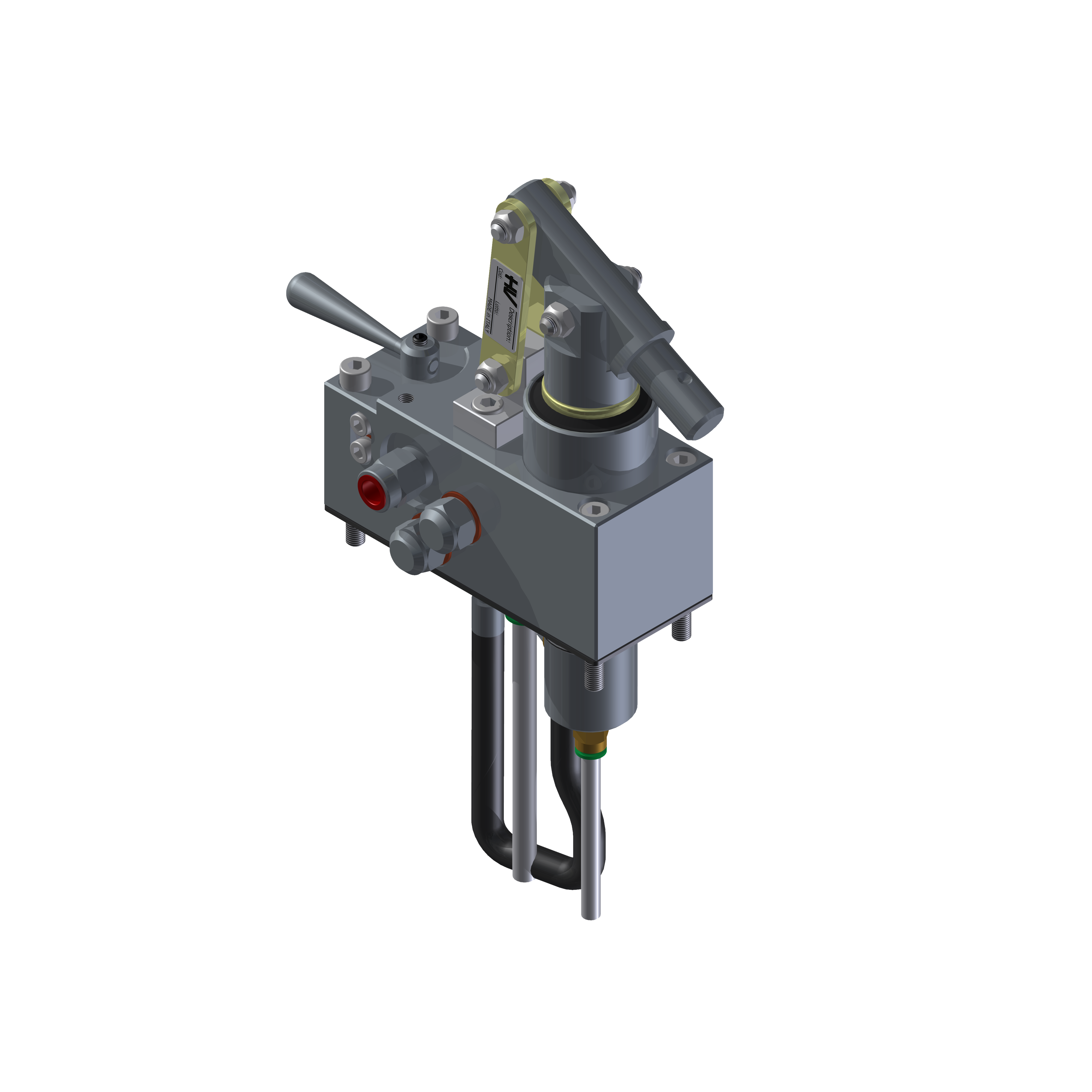

Product image

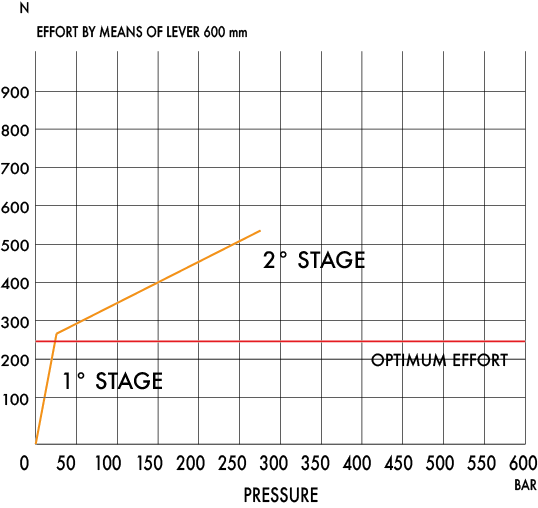

EFFORT DIAGRAM
Optimal Effort Graph
Product image
DISPLACEMENT
cm3
A
mm
B
mm
C
mm
D
°
E
°
DISPLACEMENT cm3
STAGE 1 STAGE 2
PRESSURE BAR
STAGE 1 STAGE 2
MASS
KG
CODE 3D DRAWdownload
5-50- -- -- -2927
50,2005,300
30280
7,5786070.6040 DOWNLOAD 3D DRAW
